Greetings work for a service provider



we have just fired up a new installation

yet the bevriety unit is not working properly

when I push the Middle button on left mvu

2 flavors simultaneously come out

when I push the bottom

button “water” syrup comes out

this has happened before with a wingstop unit

called it in last time but would like to figure out why and how I can fix myself

Link to comment
  • Podcaster
On 11/12/2024 at 9:54 AM, M19D said:

Greetings work for a service provider



we have just fired up a new installation

yet the bevriety unit is not working properly

when I push the Middle button on left mvu

2 flavors simultaneously come out

when I push the bottom

button “water” syrup comes out

this has happened before with a wingstop unit

called it in last time but would like to figure out why and how I can fix myself

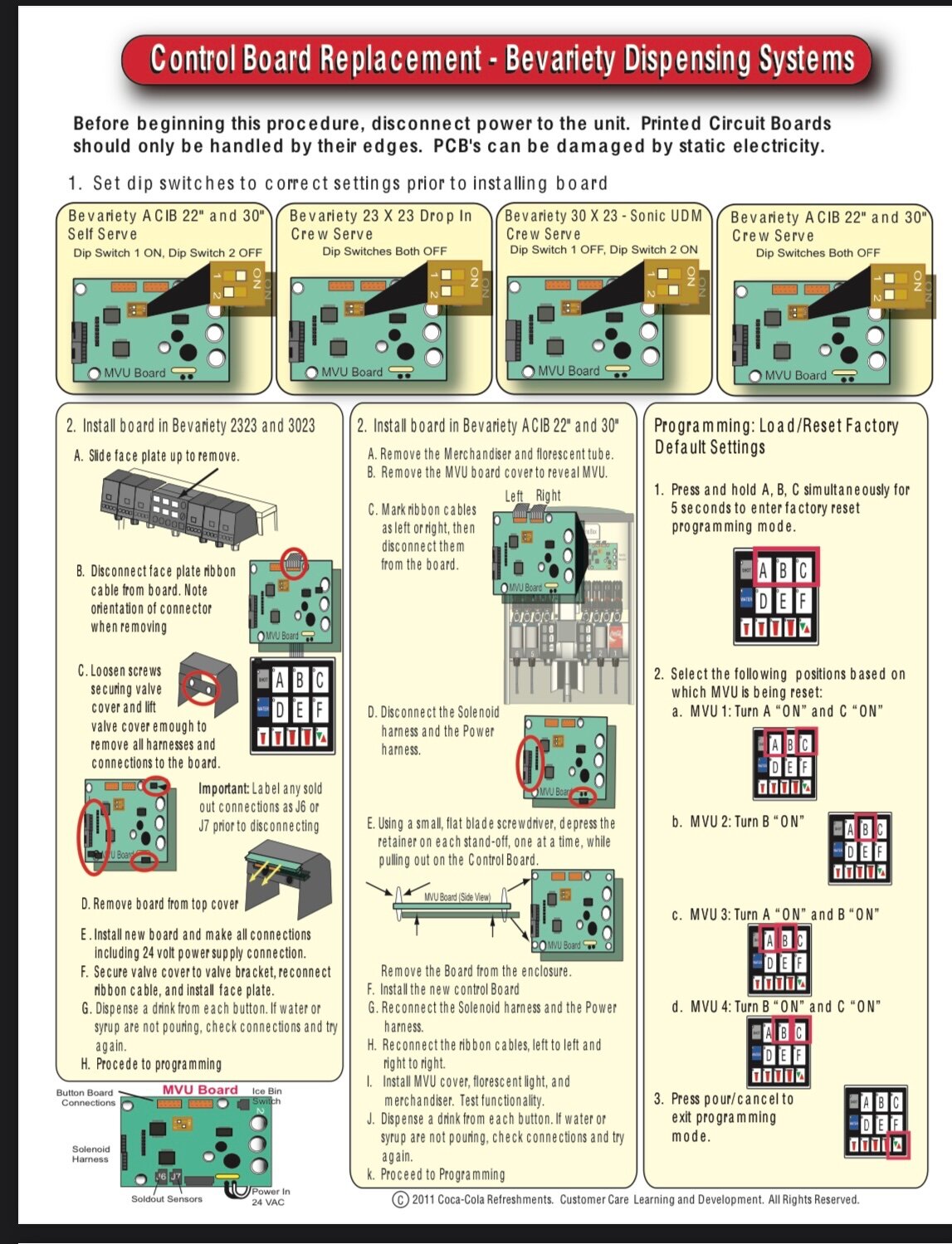

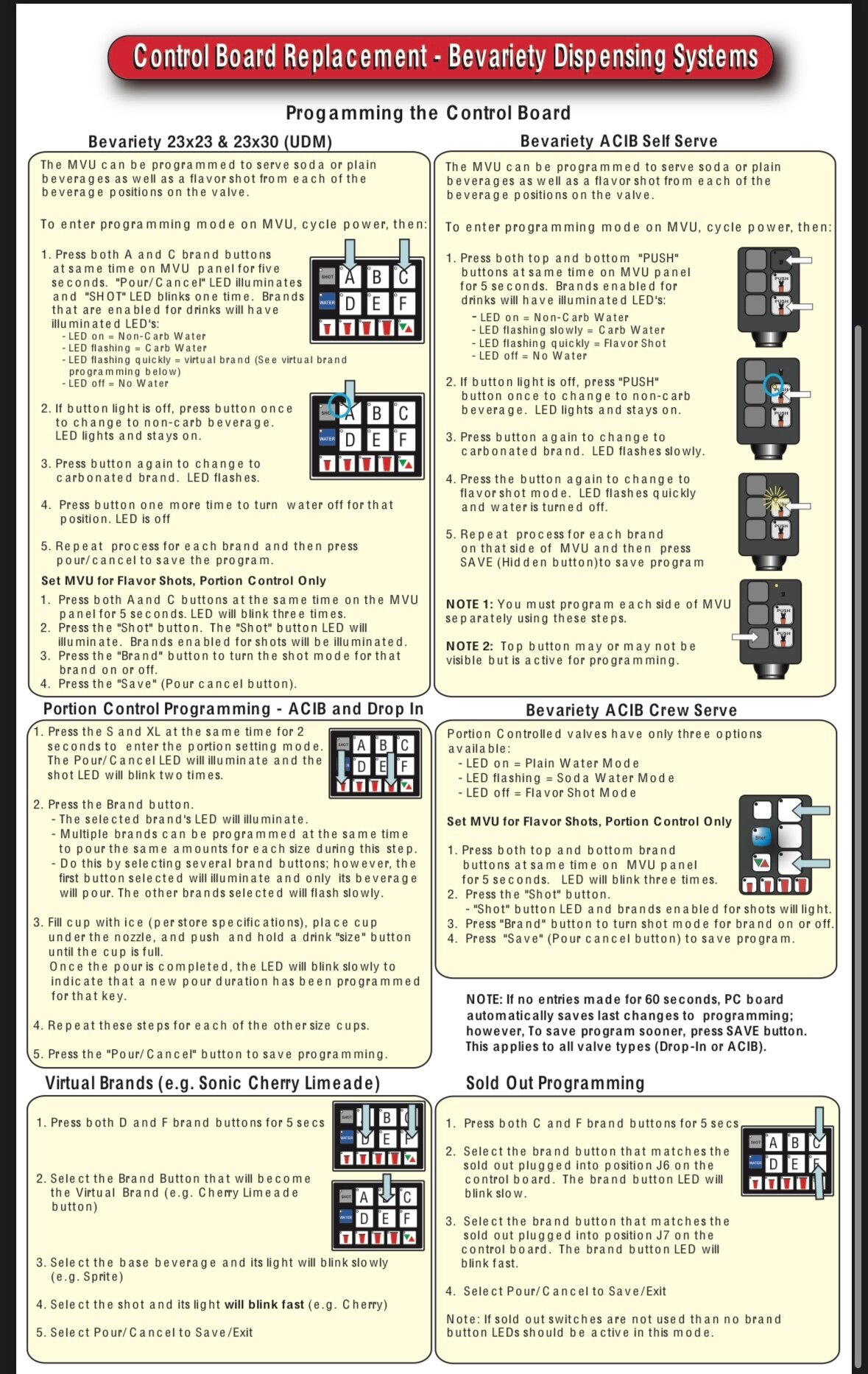

There are dip switches on the MVU board. Located top right above valves under panel behind light bulb. Switches are set to drop in instead of ice combo.  Both units use the same board. Go to coke parts, click beveriety, attachment #7 MVU Programming Instructions, and it will show you what position the dip switches should be set. This should solve your issue. Let me know if this doesn’t help. -Mike

Link to comment
  • Podcaster
1 hour ago, SIP Training said:

There are dip switches on the MVU board. Located top right above valves under panel behind light bulb. Switches are set to drop in instead of ice combo.  Both units use the same board. Go to coke parts, click beveriety, attachment #7 MVU Programming Instructions, and it will show you what position the dip switches should be set. This should solve your issue. Let me know if this doesn’t help. -Mike



X



Link to comment
  • Podcaster
On 11/12/2024 at 9:54 AM, M19D said:

Greetings work for a service provider



we have just fired up a new installation

yet the bevriety unit is not working properly

when I push the Middle button on left mvu

2 flavors simultaneously come out

when I push the bottom

button “water” syrup comes out

this has happened before with a wingstop unit

called it in last time but would like to figure out why and how I can fix myself





Link to comment
On 11/13/2024 at 9:13 PM, SIP Training said:





I found out that it was not connected correctly

the wiring on each flow control is color coded and if it’s connected incorrectly then that will happen

Link to comment

Also doing the raspberry pi update on freestyle units. I noticed if the modem is slow then you will be on job site more than an hour and half. If it’s fast it can be done within an hour.


is there any external connection we can use specifically for slow speed connection. That way we can plug in and get the job done then move on to the next one
